Garrett PowerMax Turbo Upgrade 2.0T EA888 Evo4
Garrett
Reviews
Help others choose right. Be the first to write a review!
Write a reviewPowerMax Turbocharger for 2020+ Volkswagen Golf R | Audi | Cupra | 2.0L TSI EA888 EVO4 Engine
Unleash the full potential of your 2.0L EA888 EVO4 engine with the 2020+ PowerMax Direct-Fit Upgrade and enjoy the ultimate driving thrill!

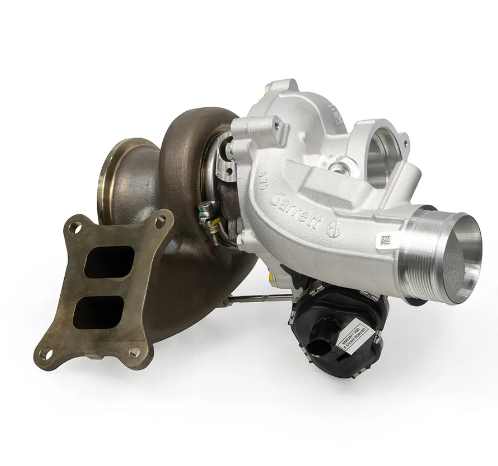

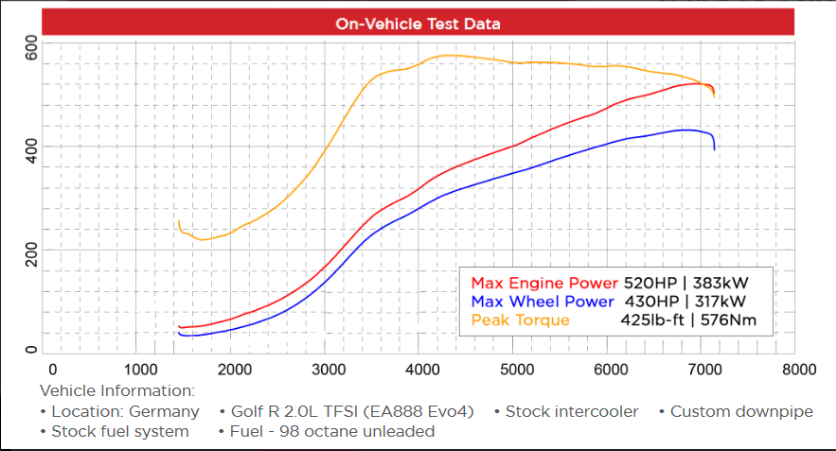

Introducing the 2020+ Garrett PowerMax direct-fit turbocharger for your 2.0L TSI EVO4 engine. This upgrade delivered 383kW (515hp) and 576Nm (425ft-lb) of torque on a dyno test. It provides a 20% increase in compressor flow and 37% increase in turbine flow compared to the OE turbo. The turbine wheel is made of Mar-M alloy and the stainless steel, internally wastegated turbine housing is rated for temperatures up to 1050°C. The PowerMax turbocharger also features a fully machined speed sensor port for tracking turbo speed.
Key Features
- Complete assembly with calibrated electric actuator for OE fitment
- 550BHP | 410kW turbo capability (on-vehicle results 520BHP | 383kW – with conservative tune)

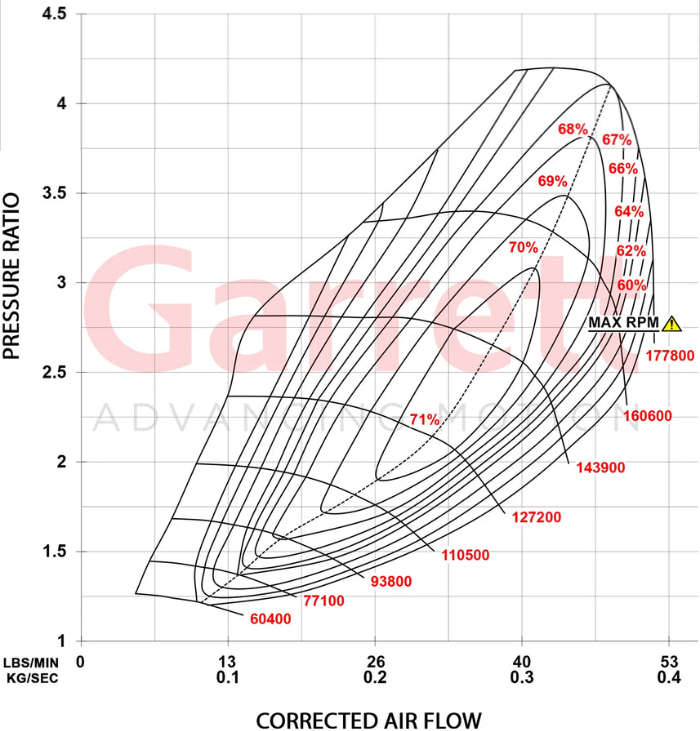

- +20% compressor flow compared to OE turbo
- +37% turbine flow compared to OE turbo
- Customized modern compressor wheel aero for application
- Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050°C
- Stainless steel turbine housing rated for up to 1050°C
- Integrated thrust bearing - reinforced for application
Technical:
PowerMax PN: 921474-5001S
Power: 550BHP | 410kW
Model: GT2563
Comp Ind: 51mm
Comp Exd: 63mm
Turb ind: 58mm
Turb Exd: 50mm
Fits:
2022+ VW Mk8 Golf R
2022+ Audi 8Y S3
Car models:
VW Golf R 2022+ North America
2.0L EA888 Evo 4 L4 – Gas
06Q145703F | 06Q145703G | 06Q145703H
VW Golf VIII GTI Clubsport 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW T-ROC R 4Motion 2022+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW Golf VIII R 4Motion 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW Golf VIII Variant TSI R 4Motion 2021+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW Tiguan TSI R 4Motion 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi A3 Limousine S3 Quattro 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi A3 Sportback S3 Quattro 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi SQ2 2021+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi TTS Quattro 2021+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi Roadster TTS Quattro 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Formentor 2.0 TSI 4Drive 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Leon Sportstourer 2.0 TSI 4Drive 2021+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Leon Sportstourer 2.0 TSI 2021+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Leon 2.0TSI 2021+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Ateca 2.0 TSI 4Drive 2020+ Europe
2.0L EA888 Evo 4 L4 – Gas
06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
----------------
