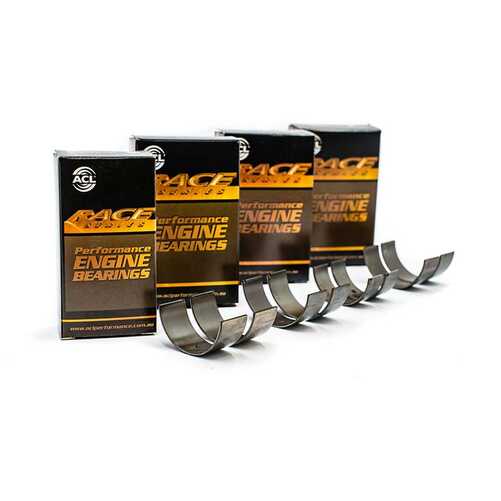

ACL Race ConConrod bearings Ford BDA, BDB, .... (020)



I lager

4-6 days

€ 51.80
{{ price }}


Help others choose right. Be the first to write a review!

Write a review
Article no.: ACL-4B1060H-020

ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.

Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.

Bearing data

Part number: 4B1060H
Bearing size: 20
Bearing half type: Identical halves
Bearing material: F781

Technical data (mm)

Max overall length: 19.17
Max shaft size: 49.213
Max tunnel size: 52.94
Max vertical oil clearance: 0.076
Max wall at crown: 1.84
Min shaft size: 49.2
Min tunnel size: 52.927
Min vertical oil clearance: 0.034

Technical data (in)

Max overall length: 0.754722907
Max shaft size: 1.937515828
Max tunnel size: 2.084247819
Max vertical oil clearance: 0.00299212
Max wall at crown: 0.072440801
Min shaft size: 1.937004018
Min tunnel size: 2.083736009
Min vertical oil clearance: 0.00133858

Engine code

BDA, BDB, ..


Ford Cosworth BDA Series 1601cc Inline4 DOHC 4v
