Nuke Fuel Pressure Regulator FPR100s
Nuke Performance FPR100s Fuel Pressure Regulator, redefining efficiency for motorsports fuel management.
Brand new, lightweight design, ethanol proof Fuel Pressure Regulator with a slim design and easy to mount stainless steel brackets. Every unit is thoroughly tested before delivery, unmatched functionality, and the same high quality as all our motorsports products.
- Lightweight motorsports regulator
- 100% E85 Proof
- Performance and quality test of each unit
- Adjustable up to 100psi (7bar)
- AN-6 ORB inlets/outlet
The most reliable solution to bring together a simple or complex fuel system setup for all types of tuning or motorsports engine setup. Redefined with low weight and well-thought functionality in focus. Lightweight design with the same hallmark as the entire Nuke Performance range of fuel upgrade parts and with an integrated stainless steel bracket for safe and easy mounting in all types of applications and installations.
Developed with high demands from motorsport
The FPR100s Fuel Pressure Regulator is co-developed with worldwide motorsports teams and fuel pump manufacturers, this fuel pressure regulator is set to perform under all conditions and for any horsepower requirement. It is designed and tested for usage with well over 1000hp and is fully adjustable between 2 and 7 bar (100psi). This is the best AN-6 fuel pressure regulator with the highest flow capacity. Ready for AN-6 ORB fittings, delivered with an AN-6 ORB plug for a single inlet setup. Fits most common AN-6 ORB fittings available.
Each regulator is rigorously tested before delivery
To maximize the quality and functionality of the FPR100s, each individual fuel pressure regulator is tested before delivery. This test is performed in a test facility with world-leading test equipment that can detect even the smallest possible properties that negatively affect its function. There is no shortcut to excellent performance and functionality of the FPR100s.
100% Ethanol Proof membrane and functionality
Like all Nuke Performance motorsports products, the FPR100s Fuel Pressure Regulator is developed, designed, and manufactured to be able to handle all alcoholic fuels such as ethanol. The fiber-reinforced membrane of the FPR100s is of the highest possible quality and comes with our 100% E85 Proof approval. Worth to mention is that the FPR100s is as good at handling petrol as it is to handle alcoholic fuels.
1:1 vacuum reference and high flow design with minimum flow loss
Fuel pressure rises on a 1:1 ratio when referencing boost. The fuel pressure is dialled in using the set screw up top with its hardened steel ball that enables exact and well-tuned fuel pressure setup. With a dual inlet design, you choose between left or right inlet, or dual inlet for V-engine setup if needed. 1/8" NPT thread faced forward for easy to read fuel pressure gauge/fuel pressure sensor installation.
5mm vacuum barb-fitting is included. The FPR100s are using AN-6 ORB threads to fit the most common fittings of choice. It comes with 1x AN-6 ORB plug that easily can be removed for dual-inlet applications. Fits most common AN-6 and AN-8 fittings, the fittings are sold separately of choice.
Developed in Sweden, guaranteeing the highest possible quality
The FPR100s Fuel Pressure Regulator is developed and designed in Sweden, inhouse by Nuke Performance. This is of the highest possible quality and with the same hallmark as all the other range of the lightweight motorsports range from Nuke Performance.
This guaranteeing the highest possible quality - there is no substitute for the quality of Nuke Performance.
Optional Nuke Performance fuel pressure gauge, 0-100psi (7bar)
To get the ultimate and full experience of your brand new Nuke Performance FPR100s fuel pressure regulator, you should supplement your regulator with our precise and stylish fuel pressure gauge that fits straight into the 1/8" NPT threaded outlet on the front of our regulator.310-01-101
FPR100s kit includes:
1 x 6AN ORB plug for the additional inlet
1 x 1/8" NPT plug for gauge/sensor outlet
1 x Barb fitting for 3/16 5mm pressure hose
1 x Stainless steel mounting bracket
2 x Stainless steel bolts for the mounting bracket
Technical information :
• CNC manufactured from aluminium alloy 6082.
• Delivered with 1 x 6AN ORB plug. AN-6 ORB male fittings are sold seperatly.
• 100% safe for alcoholic fuels such as E85.
• Extremely lightweight design for motorsports use.
• Stainless steel bracket for safe mounting.
• Anodized finish for long lasting function and corrosion free appearance.
• Fibreinhansed nitrile membrane.
• Fully adjustable from 30 to 100 psi.
• High carbon steel tension spring.
• Laserengraved and proudly branded with the Swedish flag.

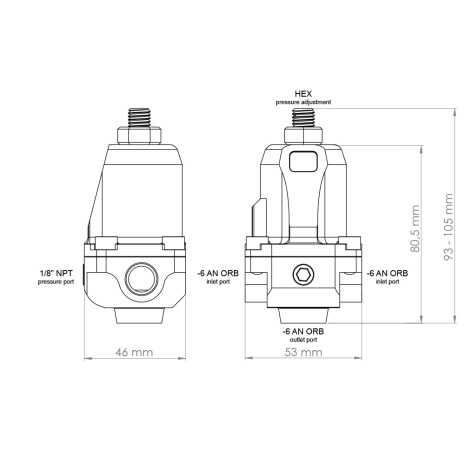

Measurements : *
Height : 80 mm
Width : 53mm
Depth : 46 mm
Weight : N/A
* All measurements without included brackets and fittings.
