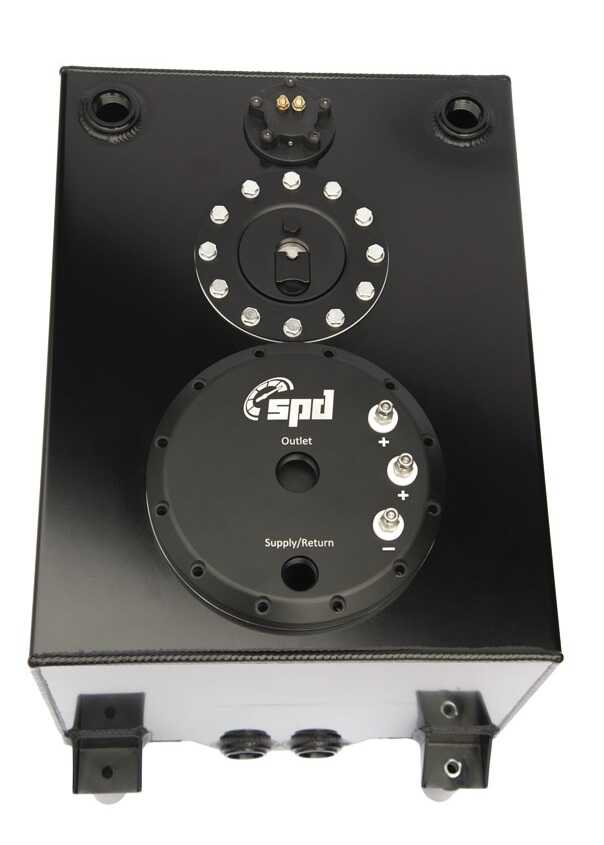

SPD Fuel cell 40L internal fuel pumps
SPD Performance Parts

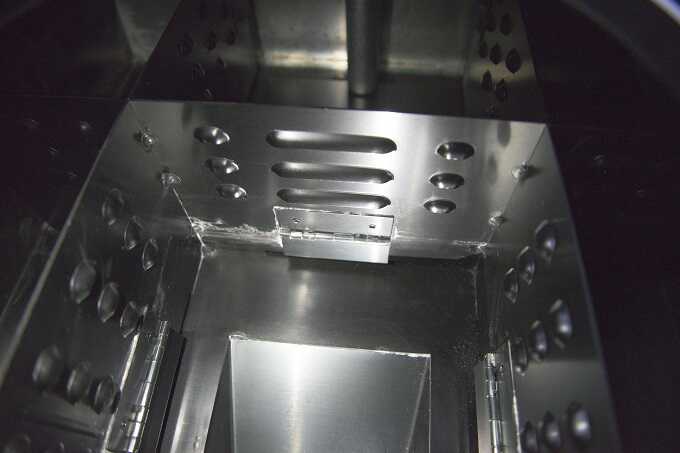

This is a greatly improved design of a classic fuel cell. This fuel cell contains no foam but is instead built up with baffles and gaps that form a well-functioning catch tank function and is reliable for anyone driving on ethanol. This fuel cell is built in 3mm aluminum which makes it very strong and eliminates the risk of cracking.
The entire tank is adapted to accept ethanol. All gaskets are made of PTFE and other materials are made of stainless steel or anodized aluminum.
This version is for internal pumps. The same fuel cell is used for external pumps but in this version you have all the extra accessories for in-tank fuel pumps.
The fuel cell has 2 outputs for external fuel pumps who can be plugged with supplied plugs.
The tank is prepared for level sensor.
All holes for the fuel pump hanger, fuel cap and level sensors can be plugged.

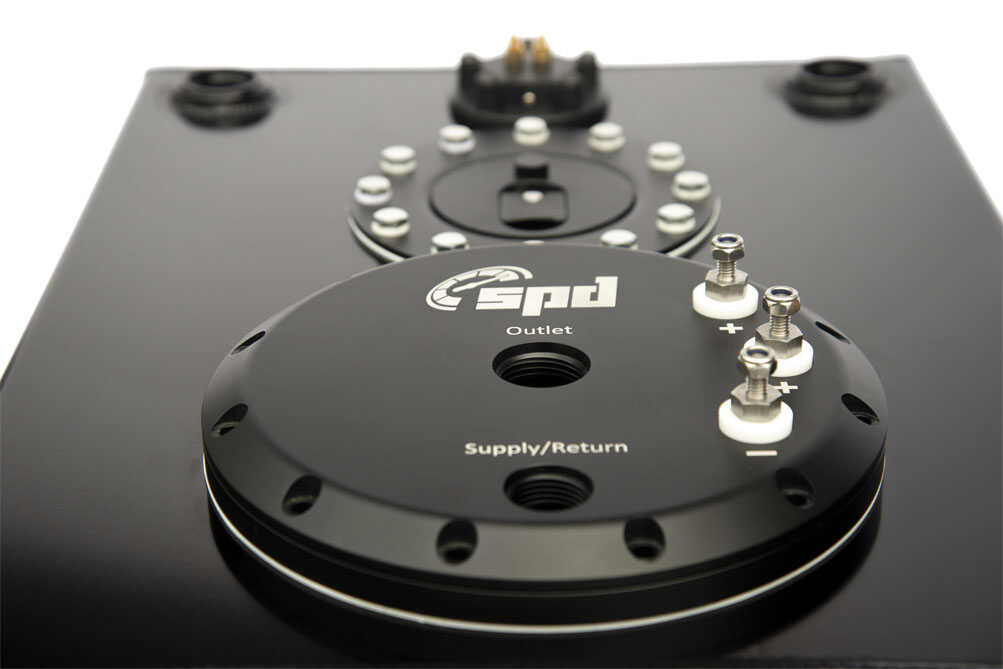

Complete fuel pump hanger and accessories.
Level sensor 0-90ohm.
Adapters from the fuel pump bracket to fuel pumps (8mm).
Stainless steel hose clips.
Spacers for lifting the tank from the floor.
- Strong construction, 3mm material.
- Anodized outside and inside.
- Up to 3 internal pumps.
- Built-in catch tank function.
- Supports external pumps as well.
- No messy foam.
- Volume 40L.
-Measurement with spacers: 540x340x315
-Measurement without spacers: 540x340x260
(Height is 260mm+50mm with bottom connections, total 310mm. Measurements without fuel pump habnger)
- Connections to pump hanger, 1xAN12 output, 1xAN10 return.
- External fuel pump connections 2xAN12.
- 2xAN12 connections on top.
- Internal roll over valve on top (optional)
Guides & Info
Very high quality product. Easy to install. If you are building an entire fuel system this is a good choice. You don't need to get a separate catch tank because it's integrated in the same package.
Kanon fuelcell med inbyggd catchtank!
Sjukt smidig fuel cell med catchtanksfunktionen! Gillas skarpt!
Kanonbra tank med den inbyggda catchtanksfunktionen. Kör med både filter och pumpar i tanken monterat i hållaren så slipper man montera det utanför.
Grym tank och kvalité
