Temperature sensor for liquids
CANchecked
Reviews
Help others choose right. Be the first to write a review!
Write a reviewA new and improved NTC01 (CC22902) fluid temperature sensor - the ideal solution for monitoring engine oil, water, transmission oil and differential temperatures. We have made the connection process as simple as possible so that you can work faster and more efficiently.
What's new?
Our temperature sensor already has an integrated 1K ohm pull-up resistor and comes with a DTM connector. This means you only need to supply it with 5V, ground and a signal line.
For MFD15/MFD28/MFD32 Gen2 devices, the TRI/TRX file is pre-configured so that if you connect the signal line directly to analog input 1, the Plug and Play values will be displayed.
Of course, you can also connect the sensor to other analog inputs or components. To do this, you need to enter the following characteristic curve and to get ready:

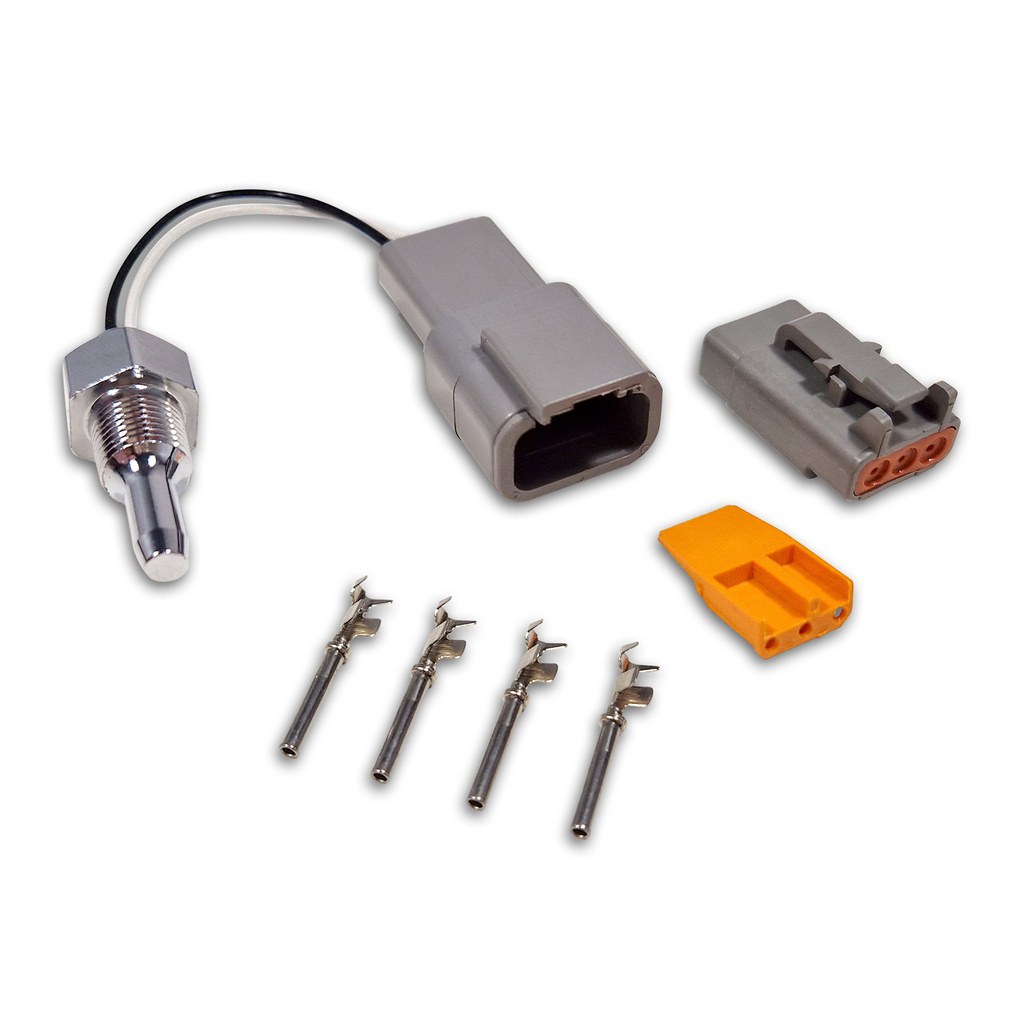

Included:
- The sensor with female connector and integrated resistor.
- The matching connector (DTM04-3P).
- 3 DTM pins for easy connection to crimp yourself.
- A wedge lock (WM-3P) to keep everything safe and stable.
Pinout:
Pin1: GND
Pin2: Signal
Pin3: +5v
----------------
