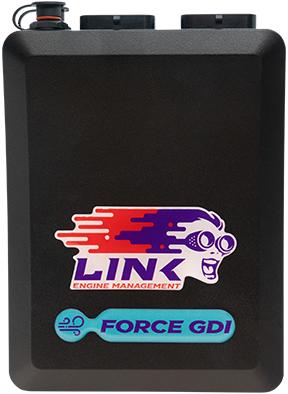

Write a reviewLink G4+ Force GDI Engine Management ECU
The Force GDI is our first ECU built specially to control Gasoline Direct Injection engines.
As well as full GDI control, the Force GDI offers on-board digital wideband, E-throttle control, high voltage injector and high pressure fuel pump management, plus all the other features you have come to expect from one of Link’s world leading ECUs.
The Force GDI can control up to 4 cylinders with direct injection.
Please confirm with LinkECU's tech support if your engine is supported before purchasing.
Inputs
8/10* x Digital inputs
4 x Temperature inputs
11 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
*2 inputs required when using 2nd CAN Bus
Outputs
4 x High voltage injector drivers (60V 10/5A Peak/Hold Current)
1 x GDI pump/Spill valve driver (11.8/6A Peak/Hold)
4 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused ignition drives can be used as additional Aux outputs
Communications
2* x CAN bus
1 x Serial (RS232) connection
1 x USB tuning connection
Physical
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams
Advanced features found only on the Force GDI:
4 high voltage Boost/Peak/Hold GDI injector drives, user definable voltage, current and durations.
1 Spill valve/GDI pump driver, peak & hold or saturated mode. User definable current.
What's in the box?
Supplied with USB tuning cable and mounting bracket.
Help
- Compare ECU
- Access wiring diagram (Link G4+ Force GDI Quick start guide)
- Download PC-Link Software (Free)
- Fault codes
- Technical Help
Telephone: +46 33281900 - 10:00-14:00 UTC +1 (English, Norwegian, Danish and Swedish)
Mail: info@speeding.nu - 24/7
Urgent 24/7 telephone here. (Please read the support pages first) - DIY documentation
When downloading PC-Link software, comprehensive help manuals are available. - The Link community / forum
----------------
