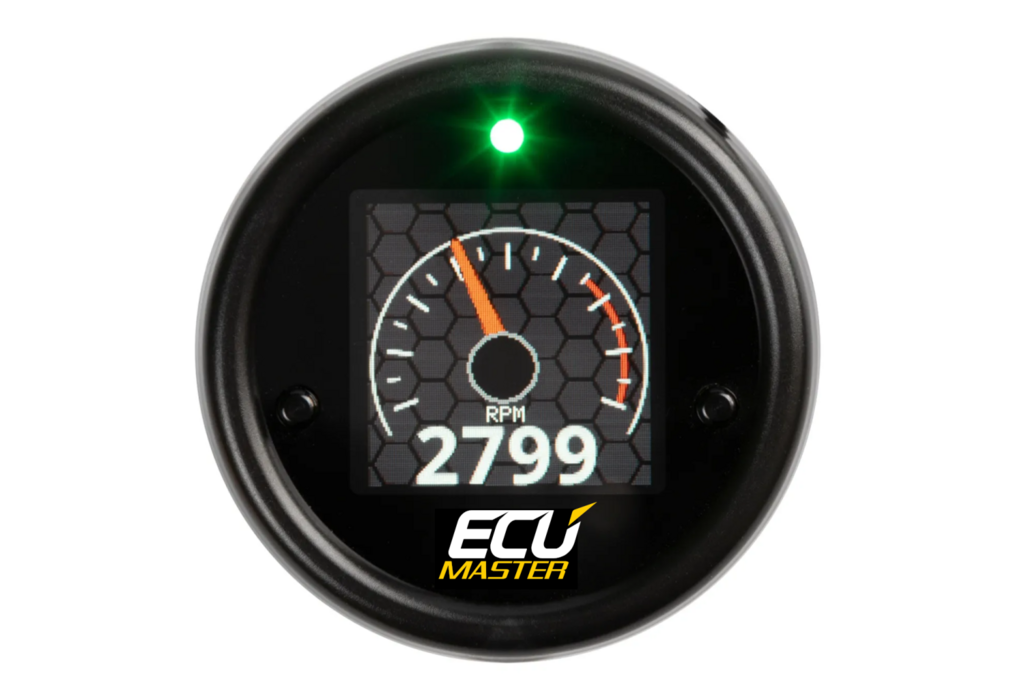

Write a reviewECUMASTER MFD15 GEN2
52mm Can-Bus multi display
Online (license required) DSS – oDSS – A completely new feature of ECU Master MFD15 Gen2 is access to the device via WLAN. So you no longer need a laptop/PC for the settings on your display.
Here you can set up your display completely, log values, upload your own start image and also update the display.
Normally asked question is: “Which values can I request from my control unit”.
The answer: "ALL", the MFD15 is compatible with ISO 11898-2 and SAE J2284.
The control unit manufacturers themselves determine which values are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported via ECU Master DSS. You can also access ECU Masters extensive list of already implemented controllers on their website.
Data is available in the broadcast, and OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as UDS are also available.
Key Features:
- Wireless internet access – Connect to your smartphone for setup, customization
- Can-Bus – Access to ECU Master complete Can Bus database (TRI Files)
- Compact – 52mm installation diameter and only 12.5mm installation depth actually fits everywhere
- Preset alarms – Ready-made warnings can be easily activated and also customized. For example: Get a big warning if the exhaust gas temperature is over 900 degrees.
- Online logging – ( Additional license required) Log your data with your smartphone and save the log for later analysis
- A total of up to 64 sensors can be queried if the manufacturer supports this.
Included standards are:
– OBD2 – 11bit/29bit
– Ecumaster Classic and Black
– DTAfast
– BMW E46 Can Bus
– BMW E90 Can Bus
– Haltech v2
– Hondata
– KMS van Kronenburg
– LinkECU
– MaxxECU
– Motec M1
– Emtron
– Megasquirt 2 and 3
– Syvecs
– Trijekt
– VW/AUDI PQ34/PQ35 etc.
– Audi S1 (CJX)
– Audi RS3/TT-RS (DAZA, DNWA/B/C)
– VW UP GTI (DKRA/B/C/D)
Other Functions:
- 1.5 inch OLED screen
- Programmable gear light
- Programmable Pop Up / LED warning
- Configurable with WiFi
- 6x analog inputs
- Analog forwarding of the inputs
- Navigation with buttons & selectable rotary knob
- Can switch (license function)
- Live Log (license feature)
- Ethanol sensor input (license function)
Different views:
- 6-fold
- 4-fold
- double value
- double bar
- circular display
- single pointer
- Double value plus bar
- And more..
----------------
